Slito Energy Storage

Container ESS

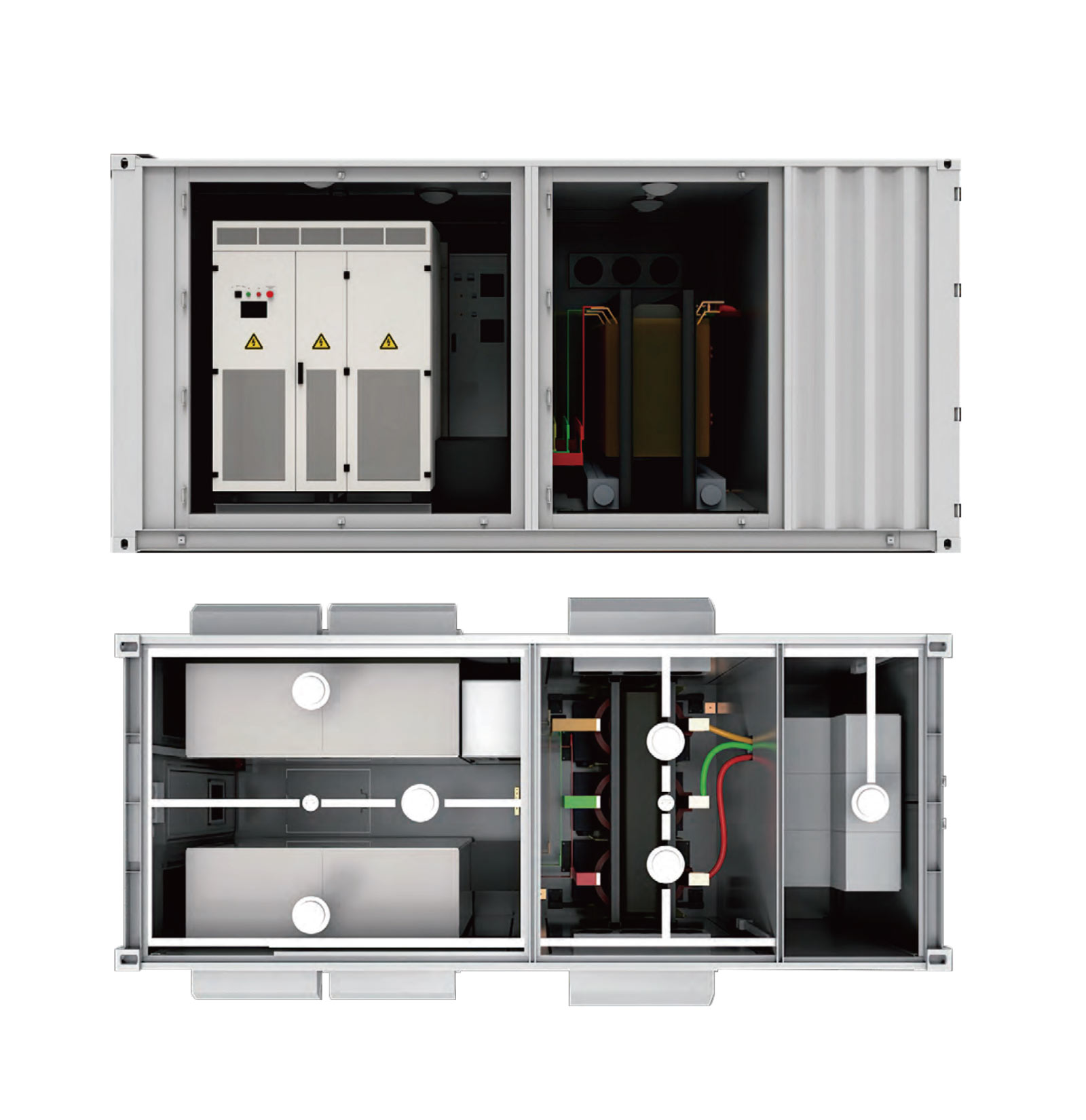

Boosting and Current Conversion Integrated Container

System Parameters
DC SideMaximum DC Voltage1500V
DC Voltage Range875~1500Vdc
Maximum DC Current2010A*2
AC Side (PCS)AC Output Power1575KW*2
Maximum AC Power1732KVA*2
Maximum AC Current1667A*2
Rated AC Voltage600V
Rated On-grid Frequency50/60Hz(±2Hz)
Harmonic Current THD<3%
Power Factor Range1Leading -1Lagging
TransformerMaximum Transformer Power3150kVA
Low-voltage Side/High-voltage Side Voltage0.6 kV/ 35(10) kV
Transformer TypeDry-type
General DataDimensions (W*H*D)mm6058*2438*2896
Weight≈16 tons
Protection LevelIP54
Operating Environment Temperature-30~+55℃
Relative Humidity Range0~95% (no condensation)
Cooling MethodIntelligent Forced Air Cooling
Maximum Cperating Altitude4000m>2000m (derating)



Boosting and Current Conversion Integrated Container

System Parameters
DC SideMaximum DC Voltage1500V
DC Voltage Range580-850Vdc
Maximum DC Current1220A*4
AC Side (PCS)AC Output Power630KW*4
Maximum AC Power693KVA*4
Maximum AC Current1111A*4
Rated AC Voltage400V
Rated On-grid Frequency50/60Hz(±2Hz)
Harmonic Current THD<3%
Power Factor Range1Leading -1Lagging
TransformerMaximum Transformer Power2750KVA
Low-voltage Side/High-voltage Side Voltage0.4KV/35(10)KV
Transformer TypeDry-type
General DataDimensions (W*H*D)mm6058*2438*2896
Weight≈16 tons
Protection LevelIP54
Operating Environment Temperature-30~+55℃
Relative Humidity Range0~95% (no condensation)
Cooling MethodIntelligent Forced Air Cooling
Maximum Cperating Altitude4000m>2000m (derating)



The AiSlito electrical liquid-cooled energy storage system offers the option of a single-unit or dual-unit configuration. The single-unit configuration utilizes a 20-foot container with a capacity of 3000kWh and a 1500V DC system. The dual-unit configura- tion combines two units in a 40-foot container with a capacity of 6000kWh and a 1500V DC system. The single-unit configuration weighs 30 tons, has a height of 2896mm, and a length of 6058mm, meeting road transportation standards without requiring special permits from transportation management departments. The battery rack is integrated with the container, with a length of 6 meters and high strength, eliminating the need for specially designed lifting equipment and addressing container deformation issues during lifting and transportation. The compartment reserves space for a battery clus- ter, which can accommodate a fully loaded single-unit capacity of up to 3357kWh or accommodate the installation of a 250kW inverter to meet user-side application requirements.
Technical Parameters Table
Battery
Parameters
Cell3.2V/280Ah LFP
Battery Module51.2V/280Ah(1P16S)
Battery Cluster1280V/358.4kWh
Battery System Voltage Range1080V-1460V
Battery System Energy5018kWh
AC Parameters
(Independent    Inverter-Boost Cabin)
Rated Output Power2500kW
Rated Voltage (Allowed Fluctuation Range)660Vac(-20%–+15%)
Voltage StandardThree-phase three-wire+ground(3W+PE)
Rated Frequency (Allowed Fluctuation Range)50/60Hz±5Hz
Rated Current1516A*2
Total Harmonic Distortion of Current≤3%(rated power)
Power Factor>0.99 (rated power)
Operating ModeOn-Grid Mode (supports off-grid mode)
Active Power Regulation1 (leading) to 1 (lagging)
Isolation MethodExternal Transformer
Other
Parameters
Cooling MethodIntelligent Temperature Control (battery cabin),
Forced Air Cooling (PCS cabin)
Fire ProtectionHeptafluoropropane/Hexafluoropropane
Battery Storage Temperature Range-20℃~60℃
Battery Operating Temperature Range0℃~45 ℃
Allowed Relative Humidity≤95%(non-condensing)
Allowed Altitude3000m
Protection LevelIP54(battery cabin)
External Communication MethodRS485/Ethernet
Container Size (L*W*H)2*(6058*2438*2896mm)
Container Weight≈60 tons



No.ItemParameters
 ModelWES-C2150/1000-A01WES-C1290/0500-A01WES-C0645/0250-A01
1Rated Capacity2150kWh1290kWh645kWh
2Rated Power1000kW500kW250kW
DC Parameters
3Cell3.2V/280Ah( LFP )
4Battery Module38.4V/280Ah
5Battery Cluster768V/215kWh
6Battery System Voltage Range648V~876V
AC Parameters
7AC Connection MethodThree-Phase Four-Wire
8Isolation MethodBuilt-in Transformer
9Rated Grid Voltage400Vac
10Allowed Grid Voltage Range-20%~15%
11Rated Grid Frequency50/60Hz
12Allowed Grid Frequency Range±5Hz
13Total Current Harmonic Distortion3% (rated power)
14Power Factor>0.99 (rated power)
15Power Factor Adjustment Range1 (leading) to 1 (lagging)
16Off-Grid ModeSupported (optional)
Other Parameters
17System EfficiencyPower Efficiency ≥97%, Energy Efficiency ≥89%
18Protection LevelIP54 (battery cabin)
19Battery Storage Temperature Range-20℃~60℃
20Battery Operating Temperature Range0℃~45 ℃
21Cooling MethodForced Air Cooling
22Allowed Relative Humidity≤95% (non-condensing)
23Allowed Altitude3000m
24Communication InterfaceRS485/Ethernet
25Dimensions≈40 tons≈30 tons≈20 tons
26Weight30 FT20 FT13 FT



The AiSlito  Electrical  Liquid-cooled  Battery  Energy  Cube adopts a standardized and modular minimalist design. The system integrates multiple proprietary technologies and features a standardized battery module, unique air channel design, and the comprehen- sive use of phase-change materials, resulting in a module temperature difference of less than 3°C. The internal battery cells within the module are connected in series with- out interconnections, allowing the Battery Management System (BMS) to monitor the condition  of  each  individual  cell.  This  multidimensional  enhancement  improves  the safety of the energy storage system and enables flexible configuration, application in various scenarios,  precise  management,  and  rapid  operation  and  maintenance.  The AiSlito Electrical Liquid-cooled Battery Energy Cube is widely utilized in various “energy storage+” applications

Technical Parameters Table
Battery
Parameters
Name3.2V/280Ah LFP
Cell153.6V/280Ah(1P48S)
Battery Module614.4V/172kWh
Battery Cluster538V–700V
Battery System Voltage Range344kWh
Battery System Energy100kw
AC Parameters
(Independent    Inverter-Boost Cabin)
Rated Output Power380VAC
Rated Voltage Rated Frequency50/60Hz
Rated Current152A
Power Factor-2
Overload Capacity1.1 times long-term operation, 1.2 times for 1 minute
Cooling MethodLiquid cooling
Protection LevelIP65
Other
Parameters
System Cooling MethodLiquid cooling
Operation Efficiency94% (rated capacity)
Battery Storage Temperature Range-10℃~40℃
Battery Operating Temperature Range0℃~45 ℃
Allowed Relative Humidity≤95% (non-condensing)
Allowed Altitude2000m (without capacity reduction)
Protection LevelIP54
External Communication MethodRS485/Ethernet
Container Size (L*W*H)1540*1230*2400
Container Weight≈2.6 tons
